Optimized for DIGITAL and analogue TV reception
• Receives all digital channels
• Unique design and compact size
• VHF and UHF reception
• Mounts both horizontally and vertically
• Saddle & Screw Coax or "F" Connection
• Includes Analogue Station Reception too
• With good reception for Analogue CH2
• Compact with excellent performance
Technical information
Bands 3,4 & 5
Channels 6 - 69 Au
Bandwidth MHz VHF-174-230
UHF- 470-862
Maximum gain dBi </= 11.5
Front-to-back ratio dB </= 32
Return loss dB -18
Beamwidth (-3dB) -23
General Specifications
Wind load @120km (720N/m2) kg(N) 3.9(38.25)
Impedance ohm 75
Maximum mast diameter mm 60
Dimensions (L x W) cm 75 x 79

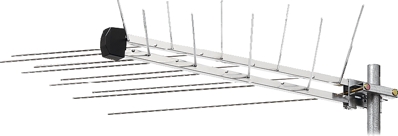

Code: LPV345
NOTE: WES Components does NOT offer
courier transport for TV Antennae delivery, sorry.
These items are listed for our local customer Sydney
Pick-Up from our show room ONLY.
