Optimized for DIGITAL and analogue TV reception
• Receives all digital channels
• Unique design and compact size
• VHF and UHF reception
• Mounts both horizontally and vertically
• Saddle & Screw Coax or "F" Connection
• Includes Analogue Station Reception too
• With good reception for Analogue CH2
• Compact with excellent performance
Technical information
Bands 3 & UHF
Channels 5 - 12, 21 - 69 AU
Bandwidth VHF-174-230 MHz
Bandwidth
UHF-470-862 MHz
Maximum gain </= 11 dBi
Front-to-back ratio </= 32dB
Return loss -13dB
Beamwidth (-3dB) +/-34 deg.
Wind load @120km (720N/m2) 3.9Kg(38.25N)
Impedance 75 ohm
Maximum mast diameter 60mm
Dimensions (L x W) 111mm x 86mm

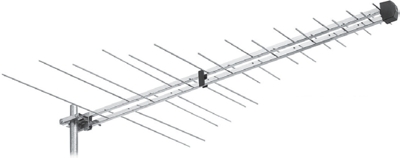

Code: LP345HV
NOTE: WES Components does NOT offer
courier transport for TV Antennae delivery, sorry.
These items are listed for our local customer Sydney
Pick-Up from our show room ONLY.
