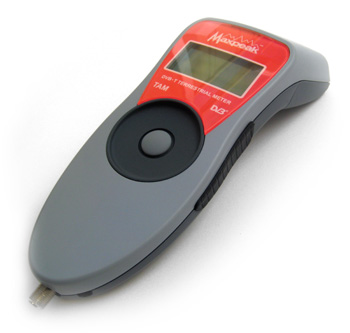

MAX-TAM DVB-T TERRESTRIAL METER
Maxpeak TAM is a battery powered hand
held DVB-T terrestrial alignment meter. It is
pre-programmed from the web via built in USB. With built
in scanning function. All difficult tasks like
programming and difficult menu or operation is
eliminated. Extremely fast and accurate.
Specification:
Band III VHF and UHF
Replaceable F-connector
75 Ohm imp 30 to 100 dBuV
RF level as dBm or dBuV.
True MER or SNR displayed in dB
Pre and Post BER in numerical value
Quality displayed in % (reverse BER)
RF, BER,MER,CSI displayed together
Scan mode to how found channels
Back light graphics display 128x64 dots
Integrated rechargeable NiMH battery
Charged from wall adaptor or car
Up to 80 transmitters dividable in sub groups
Upgrade of settings via USB 2.0
Upgrade of firmware via USB 2.0
Language option via USB 2.0
Built in audible sounder
DVB-T active antenna support
Run time in excess of 4 hours
200x75x56 mm 800 grams
Code: MAX-TAM
