  JUMP TO FAQ   DVR316

Features

  • Synchronized Audio Video Recording
  • H.264 True 4CIF each channel
  • SVGA or S-Video display output
  • Built-in IP Filtering Remote Security
  • Embedded OS Chip
  • Highly Stable & Reliable
  • Hard Disk Rack Expansion
  • Interface for external backup storage
  • Evidence playback on Windows PC
  • Multi-sites remote video client
  • Support remote web browser
  • Central Health Checking Software

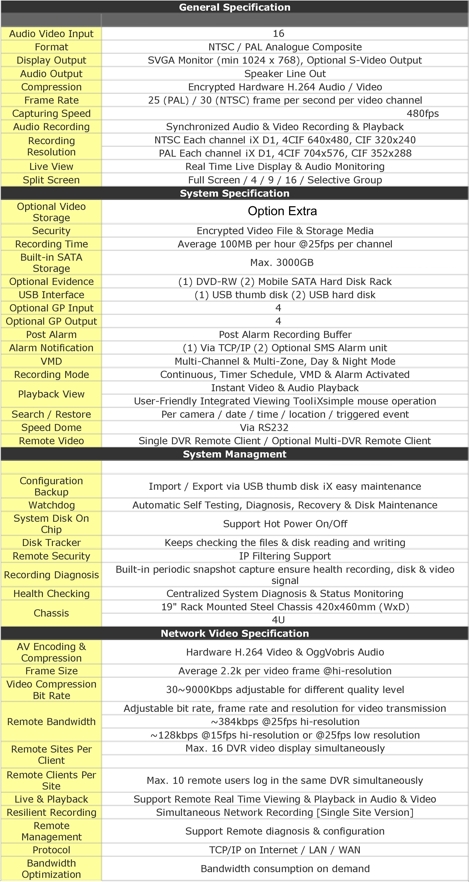

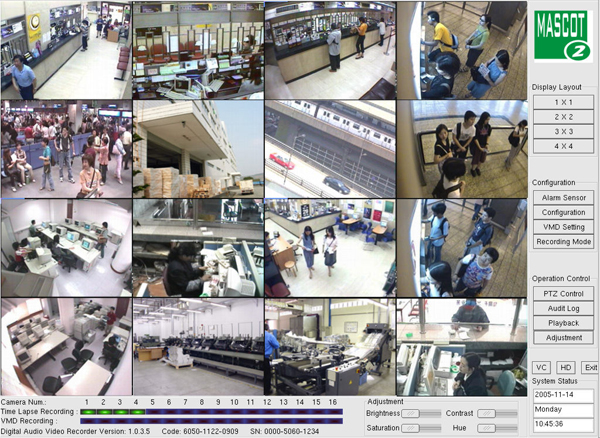

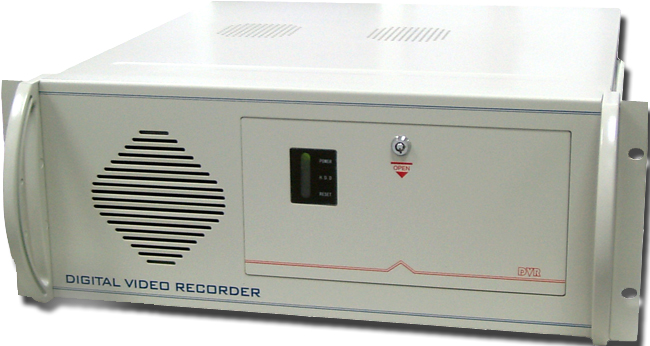

Images:
DVR316 Manual

  Linux DVR

  • Digital Audio Video Recording System
  • Embedded Linux OS
  • DVD recording quality
  • 4CIF 704x576 EACH CHANNEL
  • 4/8/12/16 Channels Audio Video Options
  • Max. 3000GB Video Hard Disk

H.264 Video Quality


FAQ



True 4CIF (704 x 576) recording per channel

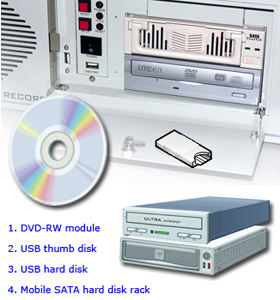

Evidence Media Options

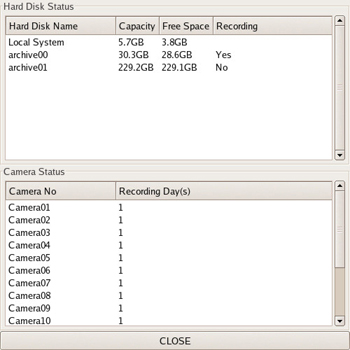

SMART HDD management - new or defective HDD auto detection



"Mouse Only" operation - on screen keypadmart Chassis Design

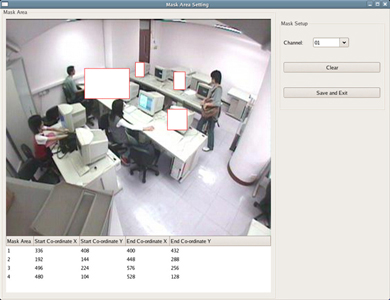

Video Mask for privacy or sensitive area






Bundled with "Mascot DVMS" standard edition

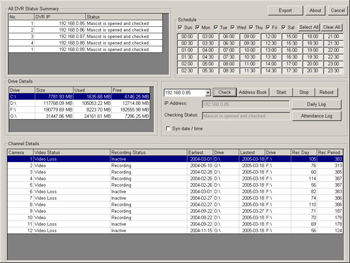

Fully supported by "Remote Health Check Software"

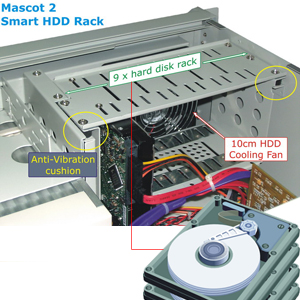

Smart Chassis Design
- Max. 9 internal hard disks

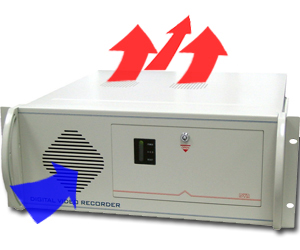

Excellent Ventilation
- Front Flow & Convection Up Flow




H.264 Video Quality

Get exactly what you need!


Don't be confused by these two values!

1. "Live View Video" is the daily display video on the monitor. The higher display resolution, the better instant picture you watch but may not be what you can get back later.
2. "Recorded Video" is the actual video recorded in the system. The higher recording resolution, the better picture you can get back at any time after the event.
Obviously, "recording resolution" is crucial when something goes wrong and evidence is necessary for review and investigation

Frame Rate

Again, DON'T be confused by these two values.
1. "Live View Video" is the daily display video on the monitor. The higher display/capturing frame rate, the smoother instant picture you watch but may not be what you can get back later.
2. "Recorded Video" is the actual video recorded in the system. The higher recording frame rate, the more pictures you can get back at any time after the event.
Obviously, "recording frame rate" is crucial when something goes wrong and evidence is necessary for review and investigation.

Impact of "Video Recording Resolution" on evidence

Refer the following specification of resolution:

PAL
NTSC
QCIF
176 x 144
QCIF 176 x 120
CIF
352 x 288
CIF 352 x 240
2CIF
704 x 288
2CIF 704 x 240
DCIF
528 x 384
DCIF 528 x 320
4CIF
704 x 576
4CIF 704 x 480

What is the difference among CIF, 2CIF, DCIF or 4CIF?

QCIF is normally used for remote video monitoring to minimize the bandwidth consumption.

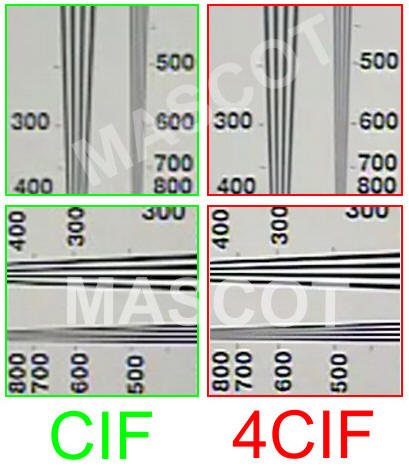

Still not clear yet! Check the comparison below. Let us take a look at the pictures, and see the difference!
Remember that recording resolution affects the future evidence, but display resolution does not.

Internal Data Storage

Hard Disk is the normal media for storage of recorded video file. Three factors should be considered for future maintenance and upgrade.

Maximum internal video storage
Even though video storage can be expanded by connecting the external hard disk via SCSI, USB or IEEE1394, internal storage hard disk provides user friendly environment. Tell your supplier the requirement of video recording period, and ask for the assembly of necessary internal hard disk quantity - hassle free!

Way of Expansion, Replacement and Installation
In cases of expansion and replacement of hard disk, some suppliers provide the internal hard disk rack which is the most convenient design. Beware that normal IDE hard disk is NOT hot plugged. Make sure that the system is turned off before adding or swapping a new hard disk via the rack.


Backup Media

CD-R or DVD-R is the convenient and inexpensive back up media of recorded video, but storage size is limited and back up time is long.
In case of infrequent but huge video files backup, hard disk rack or USB hard disk could be a good choice.
For regular and schedule backup of recorded video, central management system is almost the only solution especially for backup of numerous remote sites.

Network Remote Security

Antivirus and Firewall application software is a MUST for all those Windows based DVR which is to be connected to network for remote video.
Considering the cost of those third parties software and on going maintenance e.g. upgrade of virus definitions and patch, Linux based or Embedded OS DVR is an advantage.
Embedded OS and Linux based DVR usually provide the IP filtering for network security. Even though the technology behind is simple, it works fine and secure. Do not forget that no further maintenance cost is needed.
Hassle Free Network Security and High Stability make Linux DVR the best choice of DVR in long term.

Extremely Stable System Platform

Linux provides an absolutely stable platform for 24 hours non-stop operation of DVR. Rare "system hang up" or "system files damages" happens in the 24 / 7 operating environment. Its EXT3 formatted video hard disk storage gives extremely stable and reliable media for large number of files writing and reading in DVR routine condition.

Encryption

AVI or MPEG4 file format is familiar in the audio and video consumer market. However, it should not be the choice for security purpose. Encryption is almost compulsory in the application of digital CCTV. Proprietary file format and encrypted MPEG4 are mostly common format in the security market.

Watermark

Watermark may only be necessary in some critical or sensitive condition, but such feature can give the client more confidence.

User Interface

There are two common designs of user operation interface:
1. Mouse/Keyboard control
2. Panel button control (sometimes including Remote Control)
Mouse/Keyboard control gives user flexible and friendly operation of various functions over the high resolution display. No matter which design it is, less control button would certainly makes user feel easier.
Mascot II provides mouse only operation and control. Its on screen keypad eases the cabling, installation and user interface.



FAQ :

01. How to add new video hard disk?
DVR316 automatically detects addition or removal of video hard disk. However, video hard disk must be EXT3 preformatted.

02. How to EXT3 format the new hard disk?
Please make use of "Contractor Tool" which may only be available from local agent or contractor. Contact your local agent for this tool, or send us email directly.

03. How to remove recorded video?
In compliance to the security requirement, DVR316 DVR system itself will not provide function to remove the recorded video. During hard disk full loading, oldest video files will be automatically deleted creating space for new recorded video files.
The removal can actually be achieved by formatting the whole hard disk. Please make use of "Contractor Tool" which may only be available from local agent or contractor. Contact your local agent for this tool, or send us email directly.

04. Can I playback the recorded video on my PC?
Yes, it is possible. First, recorded video must be saved into removable storage media e.g. DVD-R or USB thumb disk. Second, recorded video can be playback on Windows based PC. Third, password is necessary if "permission" function is enabled during the back up.

05. How to back up video?
Four options are provided - USB thumb disk / USB hard disk / DVD-RW / Mobile SATA hard disk rack. A "portable player" software will be automatically saved into the media when recorded video is backup. All the back up video on these media can be playback by the portable player in any PC under Windows platform.

The availability of options depends on the model and version your local agent supplies. Please ask them for advice. Please note that only FAT32 formatted USB disk is supported.

06. How to upgrade the system?
Please make use of "Upgrade DVD" which may only be available from local agent or contractor. Contact your local agent for this tool, or send us email directly.

07. How to recover the system on accidental damage?
Please make use of bundled "Recovery CD" which may only be available from local agent or contractor. Contact your local agent for this tool, or send us email directly.

08. Any choice of system media?
We supply two versions of system media - Hard Disk & CF Card. Contact your local agent for the version suitable for your application.

09. What is the common problem in DVR316?
Video hard disk! Usually, video hard disk is assembled locally by the local agent. Please contact them for replacement whenever there is hard disk defect. In order to lower the failure rate of video hard disk, only SATA hard disk is supported by default in DVR316. We highly recommend the "industrial grade" or "DVR grade" video hard disk for non-stop recording.

10. Any recommended anti-virus and firewall software if DVR316 is to be Internet connected?
DVR316 is implemented with Linux IP and Port filtering technology which has already been an extremely reliable firewall. There is no need of installing any third party anti-virus or firewall software.

11. How to upgrade the channel number?
Purchase the video card and license registration code from the local agent. Install the video card into available PCI slot, and enter the registration code for channel upgrade.
The system software is protected by "Copyright Law".
Without the license registration code, the system will not work with the new video card.

12. Can I hot plug the SATA HDD mobile rack?
Yes, but only in some models. Please check with your local agent before trying this operation.

13. Can I back up the video on CD-R?
Only DVD-R/RW is supported owing to the popularity in the market. In addition, CD-R is too small in storage size nowadays.

14. Can I use USB port as expanded hard disk storage?
Not recommended. USB port on front panel is designed for video evidence back up only. For video hard disk storage expansion via USB port, Mascot Terabyte RAID1/5 USB Storage Solution is dedicatedly designed. Please contact your local agent for supply.

15. How to maintain the system hassle free non-operation?
Good ventilation! Most of the components in DVR316 can work for many years non stop without any problem. However, high operating temperature will lower the life cycle of sensitive electronics components. In order to maintain a reasonable temperature, good ventilation for internal (inside the system chassis) and external (fresh air flow) is almost a MUST. Regular cleaning of air filter on the front panel ensures the good ventilation inside the system chassis. Good ventilation of rack storing the DVR should not be forgotten!


DVR FAQ :

01.What do I get when I buy an DVR?
You will get an all-in-one DVR system, including peripherals keyboard and mouse, manual hardcopies, an utility software CD and an operation guide CD

02.What else do I need with DVR?
There are only two necessary things: SVGA monitor and video signal. No multiplexer, video matrix or VCR are needed anymore.

03.What happens when DVR system run out of storage?
DVR will prompt a message to the user. User may let the system overwrite the oldest images.

04.How to see recorded images?
Just left mouse click on the camera screen.

05.I cannot print out the recorded images!
Please check if you have your printer turned on and the printer cable properly connected. You can also check if your printer has been added in the control panel and selected as the default printer.

06.The screen showed "Video Loss".
Here are some common reasons :
- Check if the camera is power on;
- Check if the cable and connector has been properly connected;
- Check if there is video signal from the video cable using CCTV monitor.
- Replace with another cable to check.
07.Can I use the DVR/2000 with NTSC and PAL cameras?
Yes. DVR is specifically designed to be used worldwide together without any modifications. The system works with NTSC, PAL or CCIR and EIA cameras.

08.How does DVR work?
DVR receives analog video signal from your cameras and digitize every signal to store in the system hard disk.

09.How does IP DVR work?
IP DVR decodes the IP video signal over TCP/IP via the network, and stores the video in the hard disk in digitally encrypted format.

10.I want to record for more than 30 days. How to do that?
DVR has a built-in system for recording of over 30 days, and provides an expandable and removable hard disk rack for longer period recording or evidence backup. Firstly, you can backup the recorded images every month; or you can reduce the number of images recorded by increasing the duration of every picture, e.g. from 1 sec to 3 sec or use Video Motion Detection (VMD) to record only when there is motion.

11.I want to increase the video recording rate.
The capturing rate of DVR is different in various models ranging from 30 fps per system up to 30 fps per video channel. Recording rate of standard model is 15 fps shared among the connected cameras. Still, it is faster than traditional 16-way multiplexer and TL-VCR system.

If you want to increase the recording rate, you can use gen-lock / line lock camera which will make recording about 30 % faster.
You should be aware that continuous fast recording will consume a lot of hard disk space, that means you may have to do backup the recorded images less than the system average 30 days.
One of the important revolution in digital recording is the concept of event recording, the system record everything happen, but stop recording when there is nothing happen.This saves space and you donˇ¦t have to search for an event and change tape everyday. The system can be left working without any human intervention.

Traditional VCR and multiplexer record continuously no matter there is an event or not. The interval of shots at about 5 sec in 16-way multiplexing situation is surely not enough when there is a burglary.
Normally, the recording rate should only be increased when there is an event. In case Time lapse recording is still preferred, it is recommended that Time lapse be set at longer interval, like 5-15 sec per picture and use alarm input, VMD or data from external device for continuous fast recording when events happen.
In case you want to have real time recording on all cameras continuously, please check with your contractor for our Ultra-Fast series DVR.

12.What to do when the system has no response?
Basically, this will not happen because we employ dual CPU and dual BIOS technology. The Controller CPU will take over the system and reset the whole DVR whenever the system CPU is not working properly. Under normal situations, you can leave the system operating unattended.
In extreme case, like abnormal voltage frustration, blackout and shock, you can simply turn off the system for 15 sec and restart, the auto-detection program will resume to normal working setting.
If the system still cannot resume, please contact your contractor or dealer to get the recovery CD and follow the instruction. Please note that your particular setting and previous record will be destroyed, you have to set your particular again.



13.There is a false alarm in Video Motion Detection.
Below are some common causes of ˇ§falseˇ¨ alarm, check them.
- When using VMD in outdoor area, auto-iris lens must be used.
- Ensure that there is no electrical radiation near the system and coaxial cable
- Ensure stable voltage to the camera and the system
- Please check if the cable is properly connected, loose pin and connector will cause unstable signal
- The default video motion detection area is the whole picture frame, it is recommended to set the particular area as small as possible with the largest image changes during expected events.
