DVR140

04 / 09 / 16 channel Embedded Linux OS Digital Video Recorder

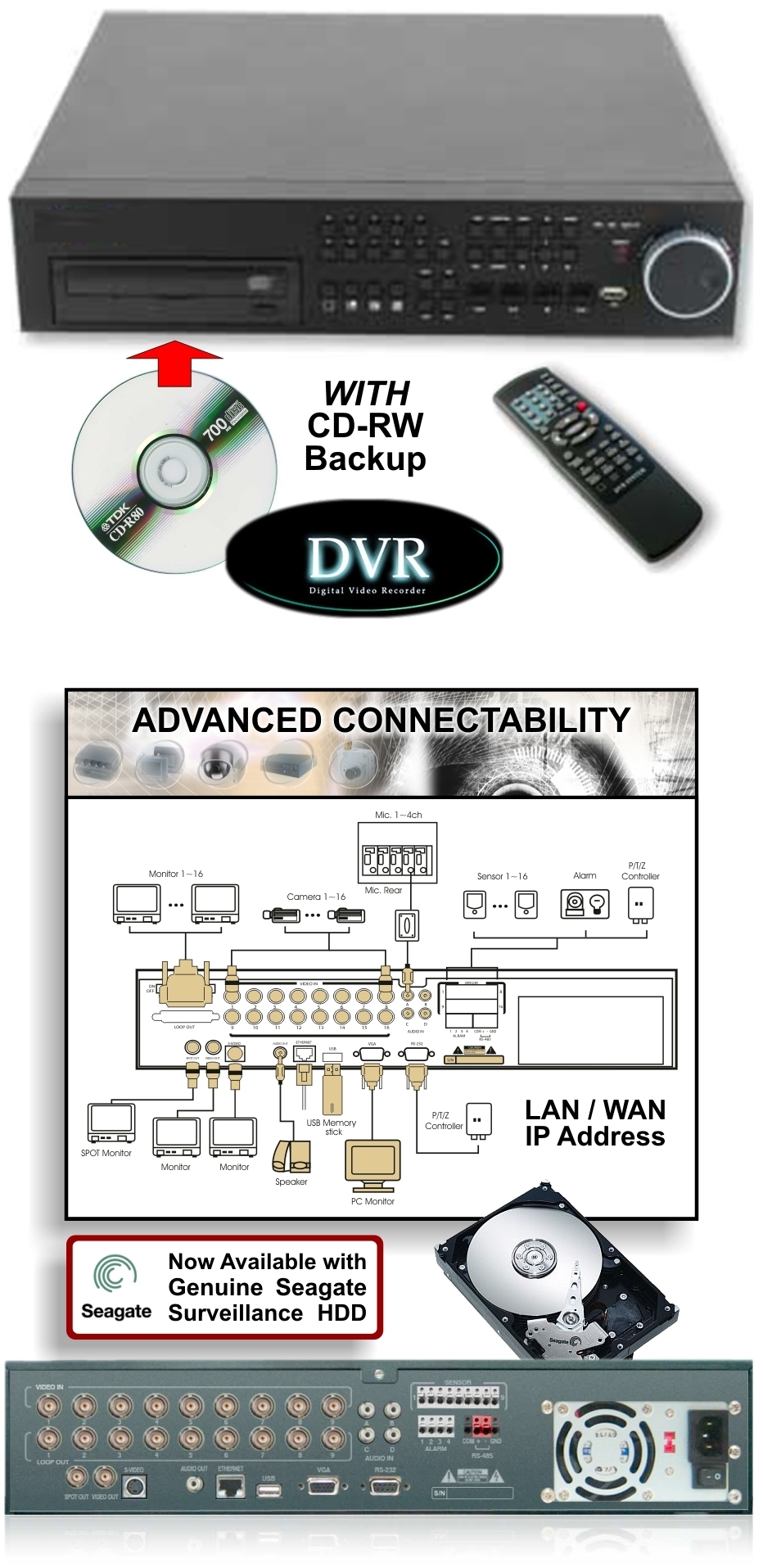

15-DVRxxSHF-WClick to enlarge

Feature

‧MPEG4 compression with average file sizes of 0.5 ~ 2KB
‧Hardware and software watchdog reliable design
‧Full D1, 720*480 resolution

‧Display speed from 120fps to 480fps and 120fps recording speed
‧Up to 5 levels of image quality adjustable
‧Auto sequence screen split and PIP
‧Continuous, motion (9 levels sensitivities adjustable), alarm and programmable event recording modes
‧Time, event and file search
‧Lock the file to save from file delete
‧CDRW / USB backup
‧Backup with its own viewer program automatically
‧Remote search, setup, backup
‧Permanent fixed time date stamping on images
‧Pre-alarm/post alarm image recording
‧Mapping sensor/control
‧Multi-protocols PTZ control via RS485 and RS232
‧Firmware upgradeable on network
‧IP filtering - allow to connect by listed specific IP address ONLY
‧Bandwidth control on remote side
‧Spot monitor and switching display
‧Central monitoring system able to manage groups of DVRs
‧4 channel audio input and 1 channel output
‧Multilingual support
‧Water Mark


CHANNEL QUANTITY & MEMORY SIZES

Available in assorted configurations. First select the quantity of camera record channels you require in either 4, 9 or 16Then choose the option of Hard disk size*for the included, built-in hard drive.*Record times are dependent on settings

4 CHANNEL

No-HDD DVR140
160Gb    DVR140HD160
250Gb    DVR140HD250
500Gb    DVR140HD500
750Gb    DVR140HD750

9 CHANNEL

No-HDD DVR141
160Gb     DVR141HD160
250Gb     DVR141HD250
500Gb     DVR141HD500
750Gb     DVR141HD750

16 CHANNEL

No-HDD DVR142
160Gb     DVR142HD160
250Gb     DVR142HD250
500Gb     DVR142HD500
750Gb     DVR142HD750

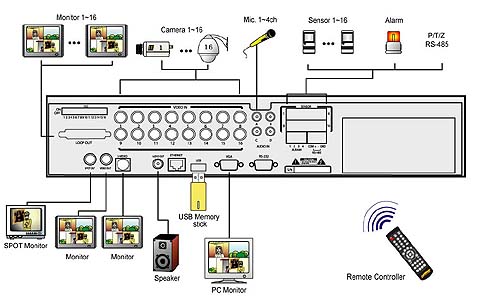

DRAWINGS, DIAGRAMS OR ILLUSTRATIVE IMAGES FOR YOUR GUIDANCE
TECHNICAL DATA DOR GUIDANCE PURPOSES ONLY PLEASE VERIFY WITH OUR SALES OFFICE
Video Input 4 / 9 / 16 Channel
Video Loop 4 / 9 / 16(Option) Channel
Resolution 720 x 480 / 720 x 240 / 360 x 240
Audio
4 In / 1 Out
Live Rate 4 ch: 120fps / 9 ch: 240fps / 16 ch:480fps
REC Rate 120fps
Alarm

4 ch: 4 In 4 Output / 9 ch: 9 In 4 Output /
16 ch: 16 In 4 Output

OS Embedded Linux
Operating Triplexes
Video Out VGA / S-Video / Spot Output
Protocl Cop1 / Cop2 / Pelco_D / Pelco_P
Compression MPEG 4
Back Up USB / HDD / CD-RW /  Network
Software I.E / CMS / CVMS
HDD Up to 4 HDDs (IDE)
OS Upgrade USB / Internet
P.T.Z Remote Control / Front Panel / Remote CMS / I.E
Language English / Chinese / Japanese / Russian / Portuguese / Polish
