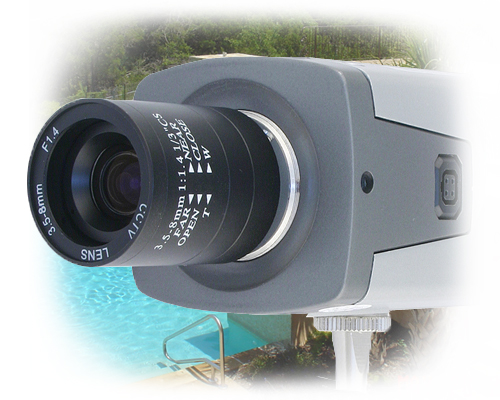

CCTV Surveillance
Simple Connection
Max.4 CCTV Camera
Full Screen Calendar
Time Display
Touch Screen
Digital Touch screen Technology
Friendly operation

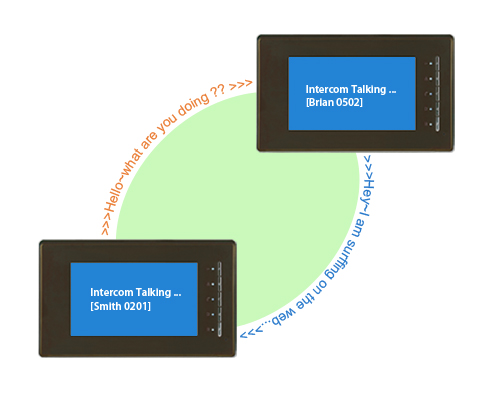

Intercom Communication
Dual intercom with your family member
Differed ring identification with call ring
Picture memory
Full color images
Max. 128images record
Home away function with auto recording

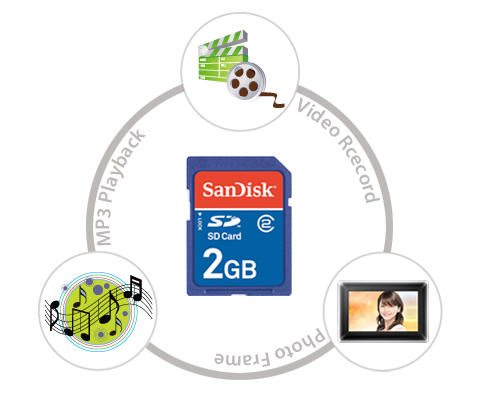

SD card Recording
10 S-30 S short movie recording
Photo frame function
Embed 128M flash by default
Max. 2G Capacity


  • LookC Door Intercom Systems


  • A minimal system comprises a Door camera, a Monitor, a Power supply and Cabling. All sold separately.
    This system is expandable to suit your application.

  • Two different systems are available.
    Note that the H2 advanced 2 Wire systems and the H4 economical 4 Wire systems are NOT compatible with each other.



2 Wires System: H2

  • No Polarity, easily to install
  • One power inline solution
  • Twisted Pair or cat5
  • Max.16 indoor Monitors
  • Max.4 Outdoor stations
  • Optional CCT Cameras

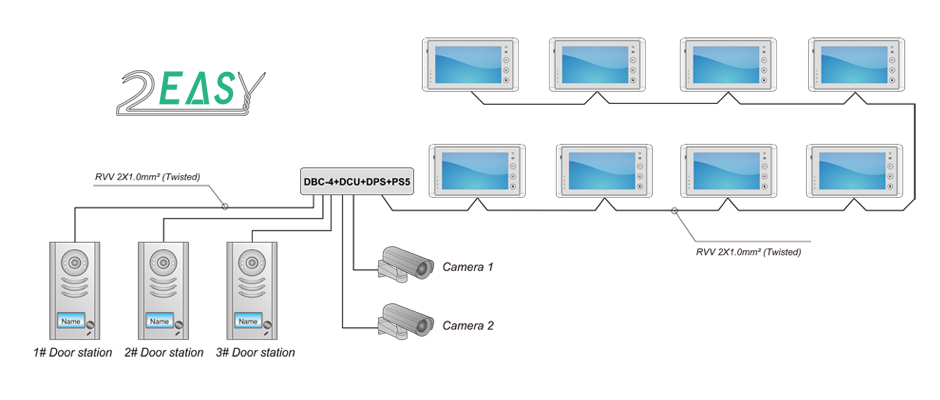

2 Wires System diagram

All on the same twisted pair wires for a simplified wiring, Non-Polarity connection.

Learn more

4 Wires System: H4

  • Max.5 indoor monitors;
  • Max.4 outdoor stations or CCTV cameras w/ switcher;
  • Each monitor comes with a power supply.
  • All H4 monitors and H4 door station are compatible.

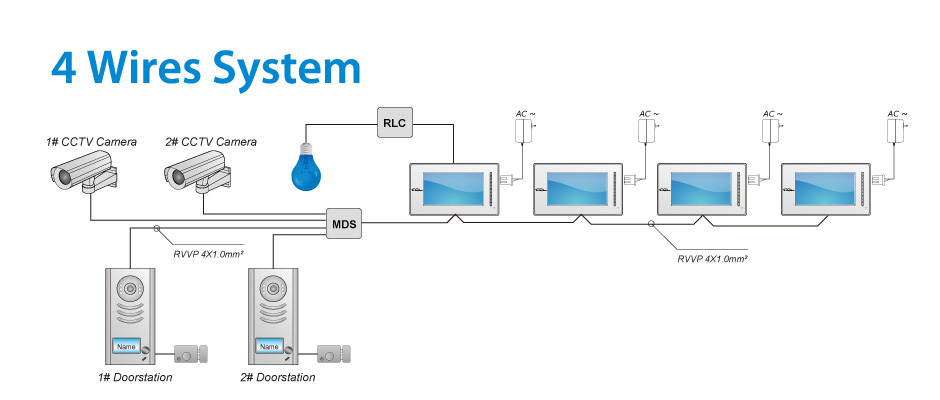

4 Wires System diagram

4 wires polarized wiring with simple setting.


Learn more


    H2
  • FEATURES
  • Calling/Talking from door station
  • Dual intercom communication between indoor units
  • Unlock Door Option
  • Picture capture and continuous photo shooting, Home-away function of auto-recording Option
  • Digital Photo Frame Option
  • CCTV Camera integration option
  • Slim modern design Monitors
  • Weather resistant outdoor stations
    2 Wire Products
  • With only 2 wires (no polarity) throughout the whole installation, the 2 -wire system is a simplified installation system with minimum wiring and powerful features.
  • The minimum wiring drastically reduces installation times and errors. By means of FM video modulation and ASK data transmission technology, system provides better protection against interference, which guarantees best color quality at all points of the installation.
  • Centralized power supply for the entire system. With advanced power management, the whole system uses only one power supply.
  • Use Plug -in connectors, screw connectors and DIP switchers for rapid installation and setup.
  • Flexible cable connection to wire, support in -out, branching and mixed mode.
  • Multi Monitors for one apartment/house in same User Code, and automatically switching the video, what is more, all types of two wires monitors and door stations are compatible each other.
  • Selective intercom (point to point) as a unique advantage for room-room talking.
  • Proximity access control function with RFID entry access.
  • Keypad entry option.
  •

    SELECT YOUR H2 MONITOR:

    • One Power Supply Injector supplied (or optional)

    • Up to 16 Monitors can be used

    • If over 4 Monitors then DBC4S Expander is required

    SELECT H2 DOOR CAMERAS:

    • Power Supplied by Injector (Supplied with monitor)

    • Up to 4 Cameras can be used

    • Multiple door stations generally require the DBC4S Splitter


    SELECT H2 ACCESSORIES:

    System expansion

    Learn more

    H4

    SELECT YOUR H4 MONITOR:

    SELECT H4 DOOR CAMERA:

    SELECT H4 ACCESSORIES:

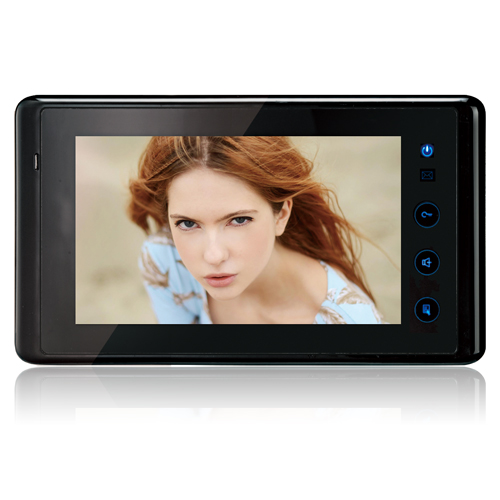

  • 7 inch Digital color TFT screen;
  • Slim design with touch sensor button;
  • Three color styles of housing for choice;
  • Touch screen operation;
  • Color icon / Text menu display;
  • H2.27TD User Manual

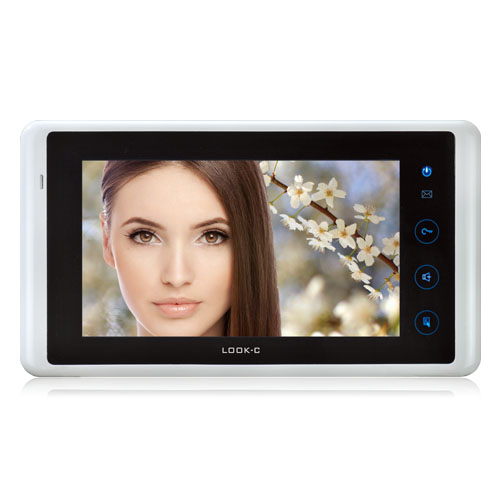

    • 7 inch Digital color TFT screen;
    • Slim design with touch sensor button;
    • Three color styles of housing for choice;
    • Touch screen operation;
    • Color icon / Text menu display;
    • Picture memory is optional;
    H2.27SDD User Manual

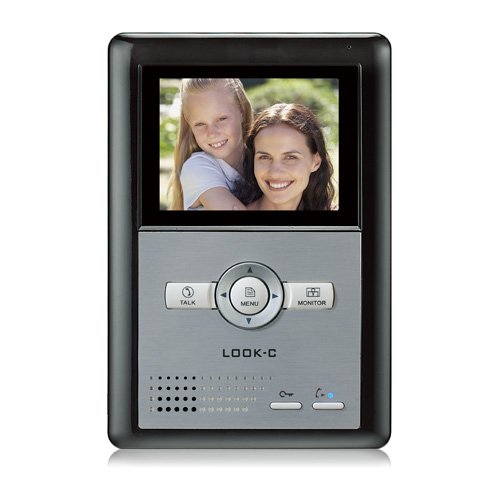

    • 4 inch Digital color TFT screen;
    • Plastic housing with aluminum front panel;
    • Black or white color housing for choosing;
    • Streamlined & thin design
    • Color icon / Text menu display;
    • Picture memory is optional;
    H2.254 User Manual

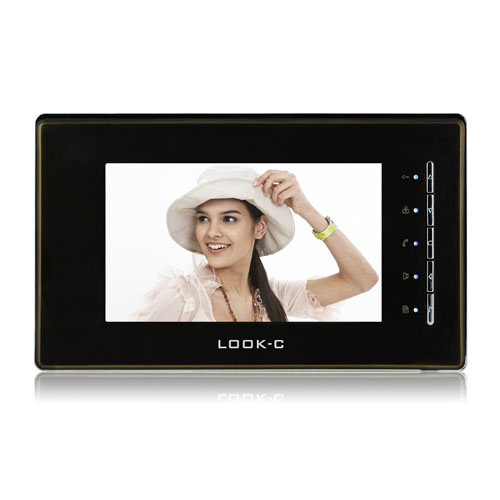

    • Discontinued.
    H2.10D User Manual

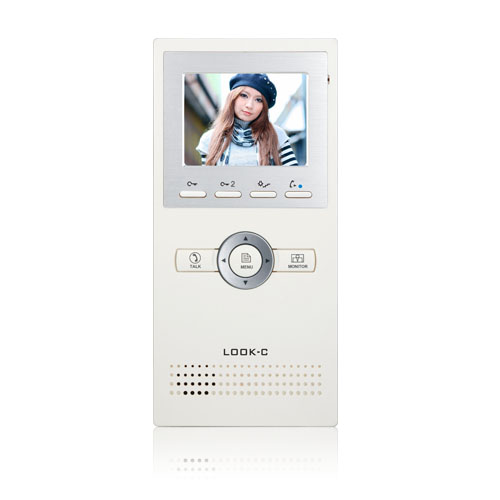

    • 3.5 inch digital color TFT screen;
    • Streamlined & thin design with 20mm thickness only;
    • Full aluminum front panel is optional;
    • Text menu display;
    H2.16 User Manual

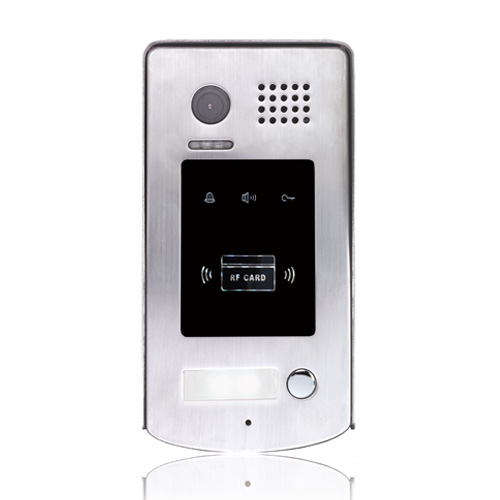

    • Stainless steel design with vandal proof function;
    • 4mm plexiglass window cover;
    • ID card Proximity access control;
    • Color CCD Camera with high resolution;
    • Name plate display with white led background light;
    • Auto light-on led for night view;
    • Flush or surface mounting for choice;
    • IP55 protection rate;
    H2.96ID User Manual

    • Zinc alloy material design;
    • Color CCD Camera with high resolution;
    • Large name plate display;
    • IP45 protection rate;
    H2.91RH User Manual

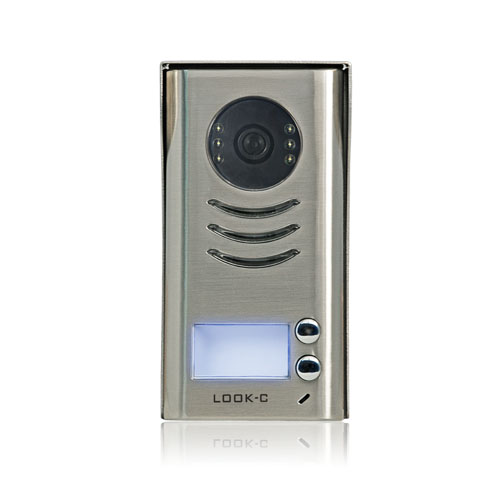

    • Zinc alloy material design;
    • Color CCD Camera with high resolution;
    • Large name plate display;
    • Two call button for two families;
    • IP45 protection rate;
    H2.92RH User Manual

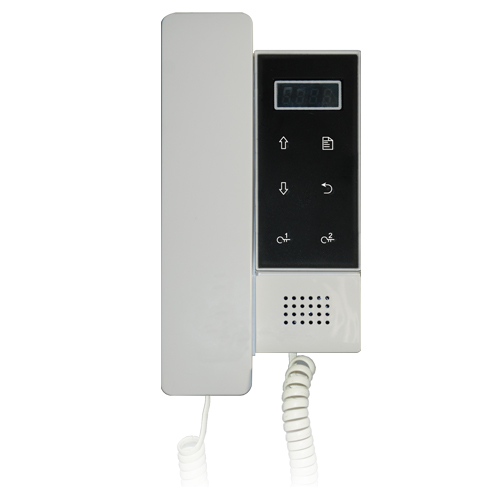

    • Handset audio phone;
    • Touch sensor button;
    • Compatible with all DT outdoor & Indoor stations;

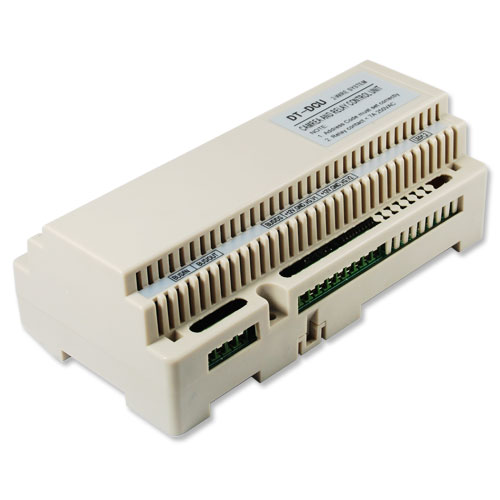

    • CCTV Control Unit;
    • 12V DC output for CCTV;
    • Light control or second lock control;
    • Unlock time or light delay time setting;
    DCU Villa User Manual

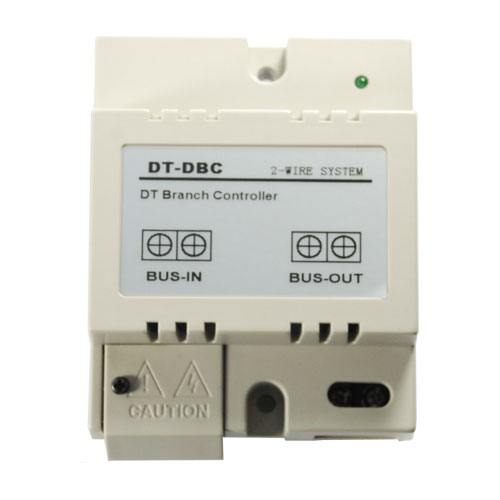

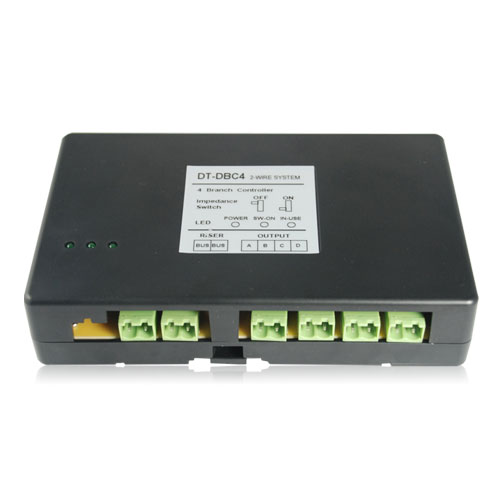

    • Branch Controller;
    • Four video output for monitors;
    • Support multi door stations;
    • Branch Controller;
    • Non-polarity connection;

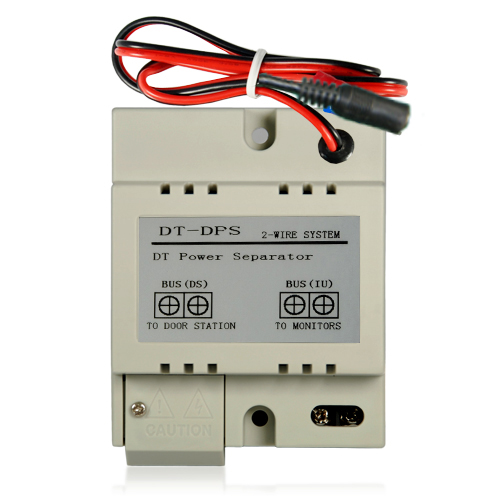

    • Power supply Separator;
    • Non-polarity connection;
    • SMPS Din-rail Power supply
    • Input:100-240V 50/60HZ;
    • Output:24V 1A;

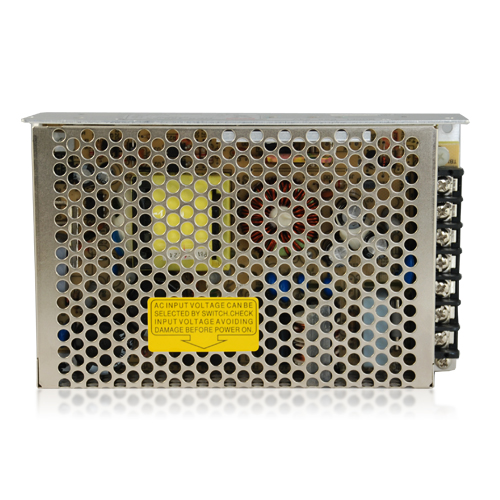

    • SMPS Din-rail Power supply
    • Input:100-240V 50/60HZ;
    • Output:24V 4.5A;
    4 Wire Products

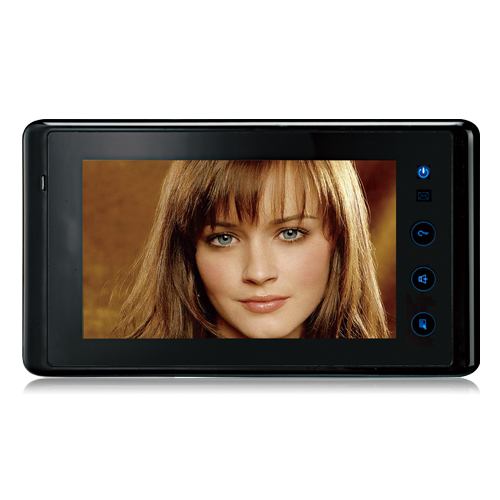

    • Touch screen operation;
    • Touch sensor button on the panel;
    • Color icons menu with graceful background;
    • Picture memory sharing for saving costs;
    • Support VT-QSW Video quad splitter;
    H4.27TD User Manual

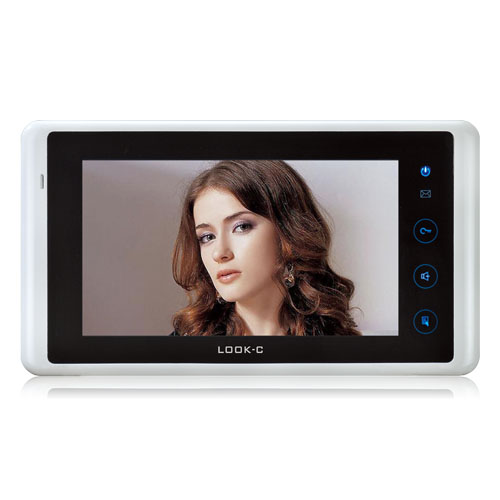

    • Touch screen operation;
    • Touch sensor button on the panel;
    • Color icons menu with graceful background;
    • Picture memory and SD card recording;
    • Picture memory sharing for saving costs;
    • Support VT-QSW Video quad splitter;
    • Album display (digital photo frame);
    H4.27SDD User Manual

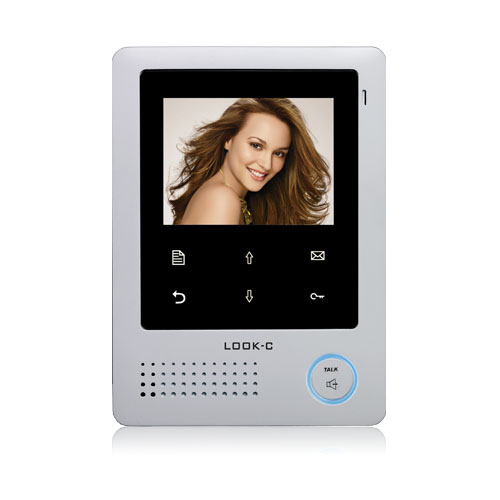

    • Slim stream line design;
    • Touch sensor button operation;
    • Color icons and menu display;
    • Built in SMPS power supply;
    • Support VT-MEM public memory modular;
    • HS24 Handset is optional for handset working mode;
    H4.24 User Manual

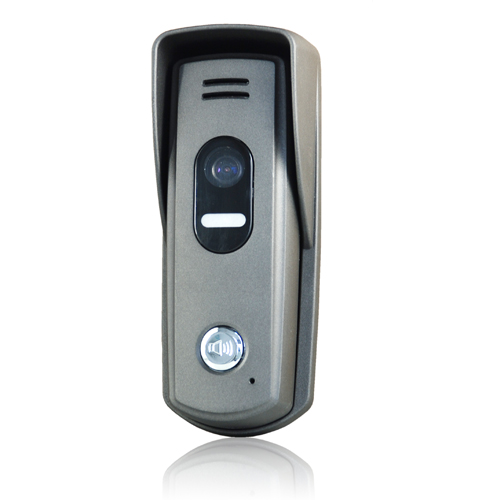

    • Zinc alloy housing with compact design;
    • Outstanding audio performance;
    • Wide angle color CCD Camera with high resolution;
    • High white led light for night view;
    • Rainy cover or full flush mounting;
    • IP55 protection rate;
    H4.595RH User Manual

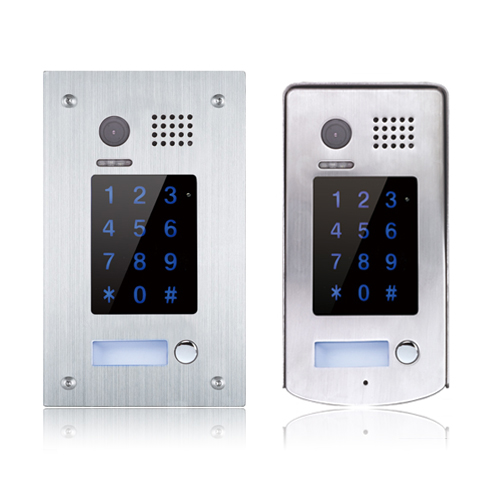

    • Stainless steel design with vandal proof function;
    • 4mm plexiglass window cover;
    • keypad password access control;
    • Color CCD Camera with high resolution;
    • Name plate display with white led background light;
    • Auto light-on led for night view;
    • Flush or surface mounting for choice;
    • IP55 protection rate;
    H4.96(F)KP User Manual

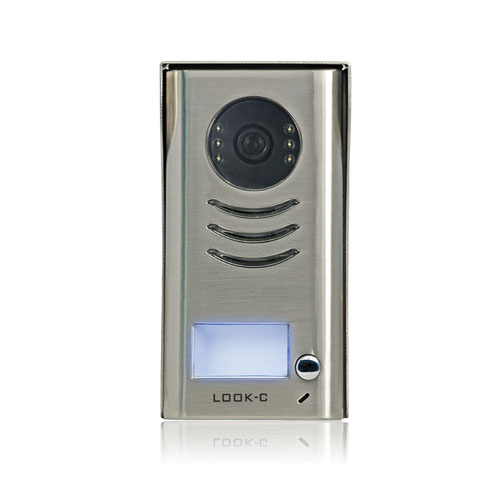

    • Pinhole-lens camera;
    • Zinc alloy housing;
    • Camera's angle is adjustable;
    • Name plate display with white led background;
    • Surface wall mounting by a rain cover;
    • IP 45 waterproof protection;
    • VT592 with two call buttons for two families;
    H4.91RH User Manual

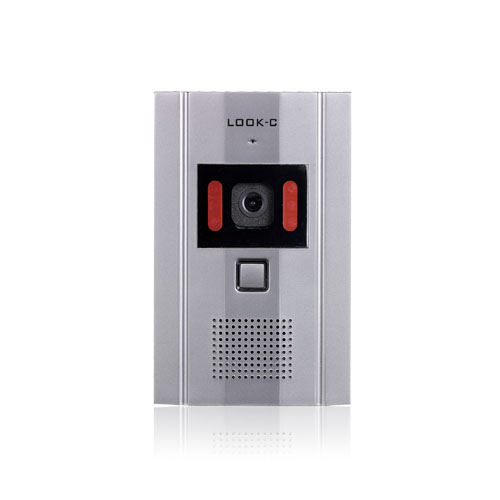

    • Plastic housing with compact design;
    • Camera's angle is adjustable;
    • Half-flush mounting;
    • High white led or Infra red night vision;
    H4.84 User Manual

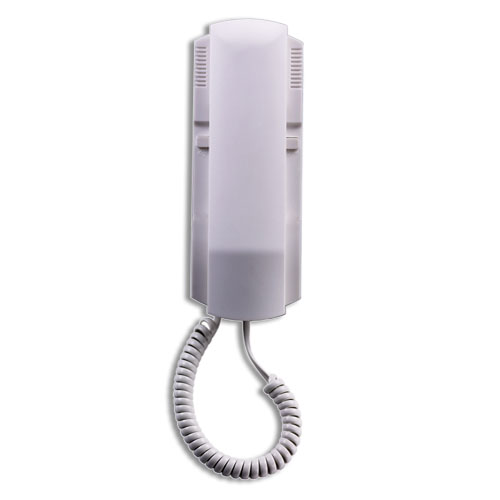

    • Audio Phone with handset;
    • Complementarity to monitor;

    • Multi Door Station Switcher;
    • CCTV Camera Switcher;
    • 86*86mm standard box installing;
    4CSM User Manual

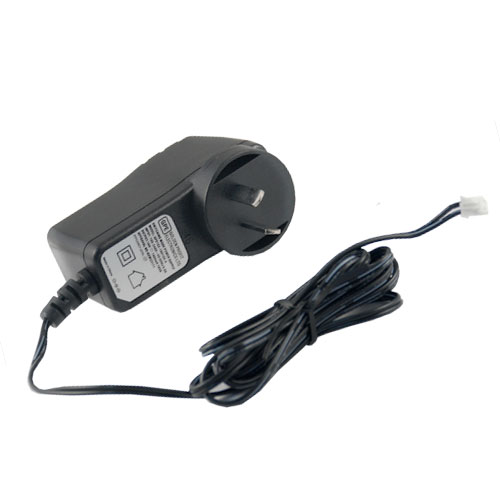

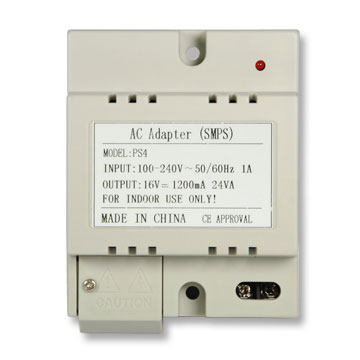

    • SMPS Adaptor
    • Input:100-240V 50/60HZ;
    • Output:16V 1000mA;

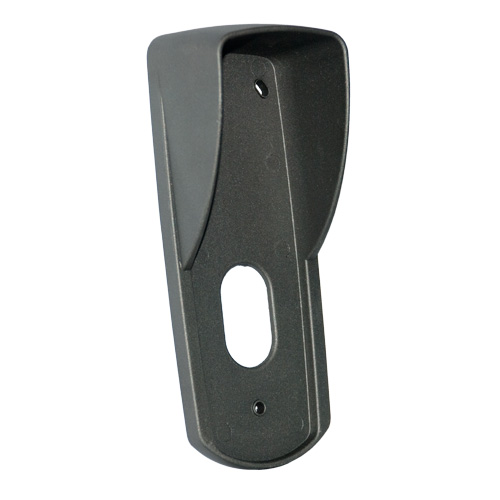

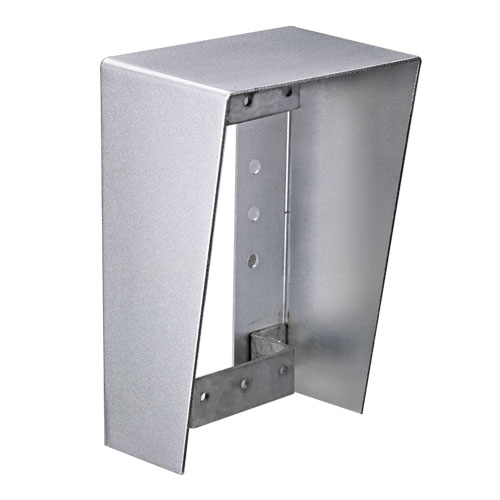

    • Rain cover for H4.595RH;
    • Surface mounting;

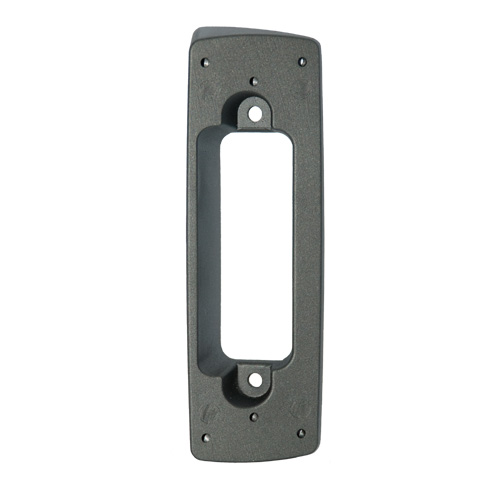

    • 30 degree angle accessory for H4.595RH;
    • Surface mounting;



    • Rain cover for CC584, CC587;
    • Surface mounting;
