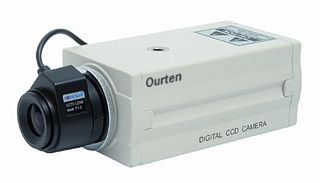

CAM010 - 420 TV Line 1Lux

Lens Options - Please Enquire


¡@


¡@

¡@
¡@
¡@

CAM010



Image sensor

1/3"CCD SHARP

Resolution

420 TV Line

Min Illumination

1lux/F1.2

Effective pixel

PAL 681(H)*582(V)

S\N Ratio

More than 46dB

Gamma

0.45

BLC

Auto

White balance

Auto

Synchronizing System

Internal

Scanning System

PAL525Lines,50 Filed/sec

Shutter Speed

1/50-/100.000(Sec)

Mount

C\CS

Iris

Video/Dc

Power supply

DC12v   AC24v   AC220v

Operation Temp

¡ß10¢XC ¡ã 50¢XC

¡@
¡@
